Charging

To supplement the power of electric vehicles,
Reduce dependence on traditional energy sources.
pc背景图 移动背景图
pc背景图 移动背景图

Intelligent management

It can monitor and manage the use of charging piles, charging status and power consumption, which is convenient for users to manage and query. Adopt safe and reliable design, in line with relevant national standards.

配图

High efficiency and stability

Our charging pile has efficient and stable charging performance, which can quickly charge electric vehicles and shorten charging time.

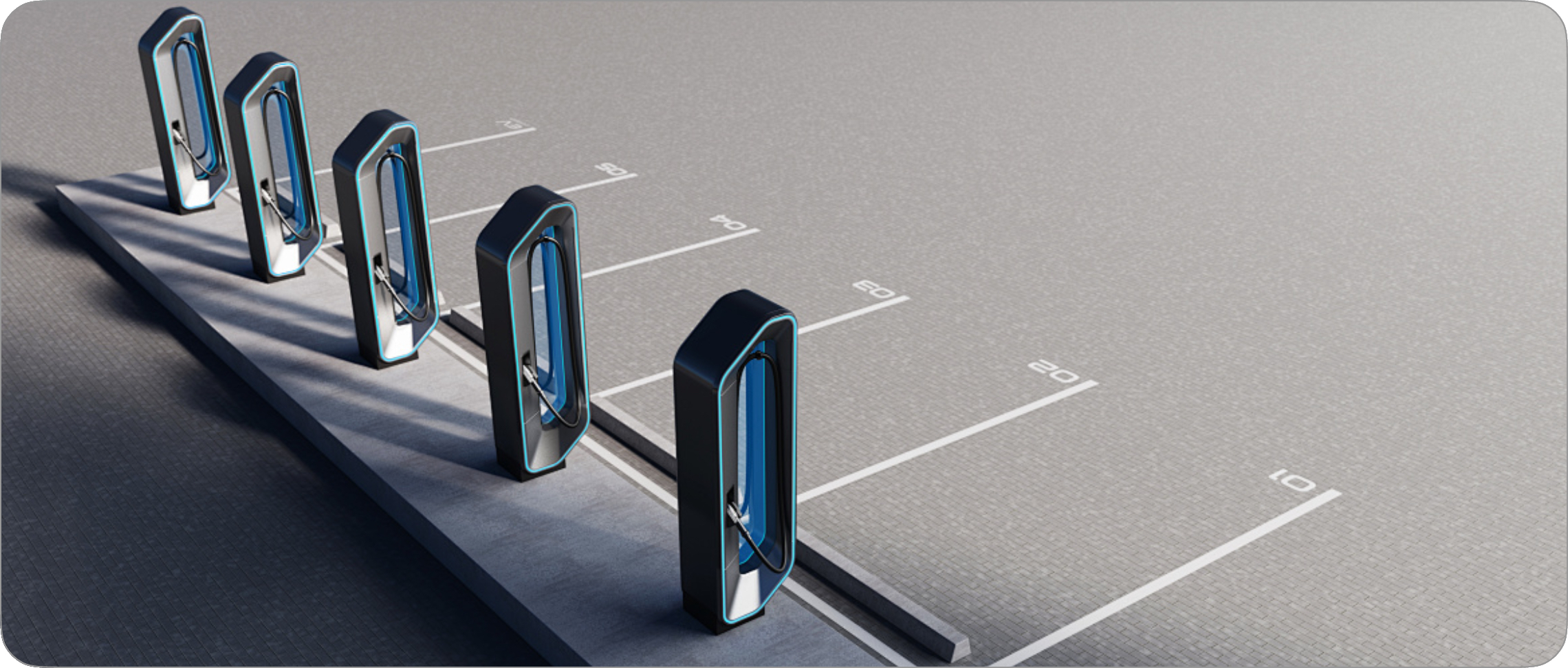

Application scenario

Suitable for a variety of installation environments

Suitable for a variety of installation environments

背景图

Stable and durable

High quality materials and advanced technology are used to ensure its stability and durability. By choosing our products, you’ll get an efficient, intelligent charging solution that provides long-term, reliable energy support for your electric vehicle.

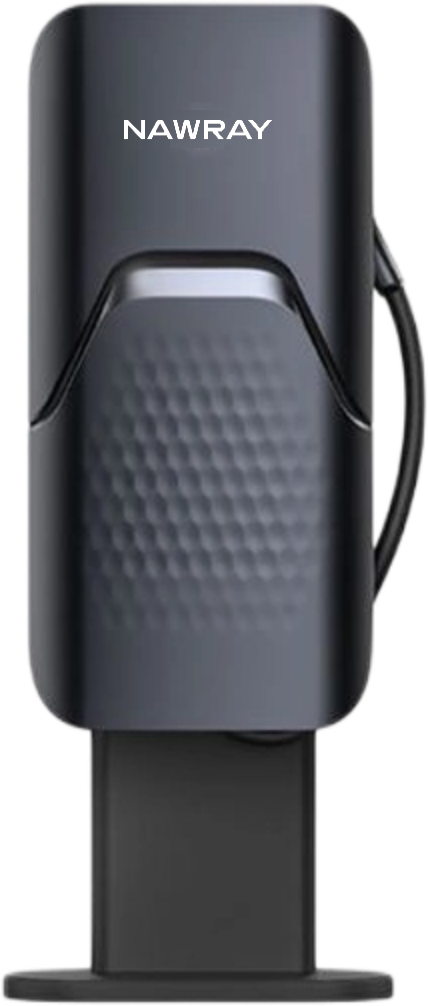

充电桩 Product manual

Product specification

  • Input voltage

    AC380V ± 10%

  • Incoming frequency

    50/60Hz

  • Current harmonics

    <3%

  • Power factor

    >0.99

  • Output voltage

    DC300V~45 0V

  • Output current

    1A ~ 100A

  • Output ripple

    1%

  • Voltage stability accuracy

    ≤

  • Current stabilization accuracy

    ≤ 1%

  • Maximum efficiency

    97%

  • Communication mode

    RS485/RS232/ Ethernet

  • Display usage

    Color touch screen

  • Defensive function

    Over current protection, short circuit protection, over voltage protection, over heat protection, output reverse protection, phase loss protection, etc

  • Noise

    <65dB

  • Safety index

    The insulation resistance is greater than 200M, and the voltage is 1500V 1min

  • Level of protection

    IP20

  • Cabinet type

    A

  • Dimensions（ mm ）

    700*600*1800

  • Weight（ Kg ）

    420

  • Colour

    Camel grey, standard light grey

  • Way to install

    Floor mount

  • Environment temperature（℃）

    -25 ℃ ~ 55 ℃

  • Type of cooling

    Forced cooling

  • Storage temperature

    -25 ℃ ~ 55 ℃ ，non-corrosive gas

Charging

Please contact us for more product information
