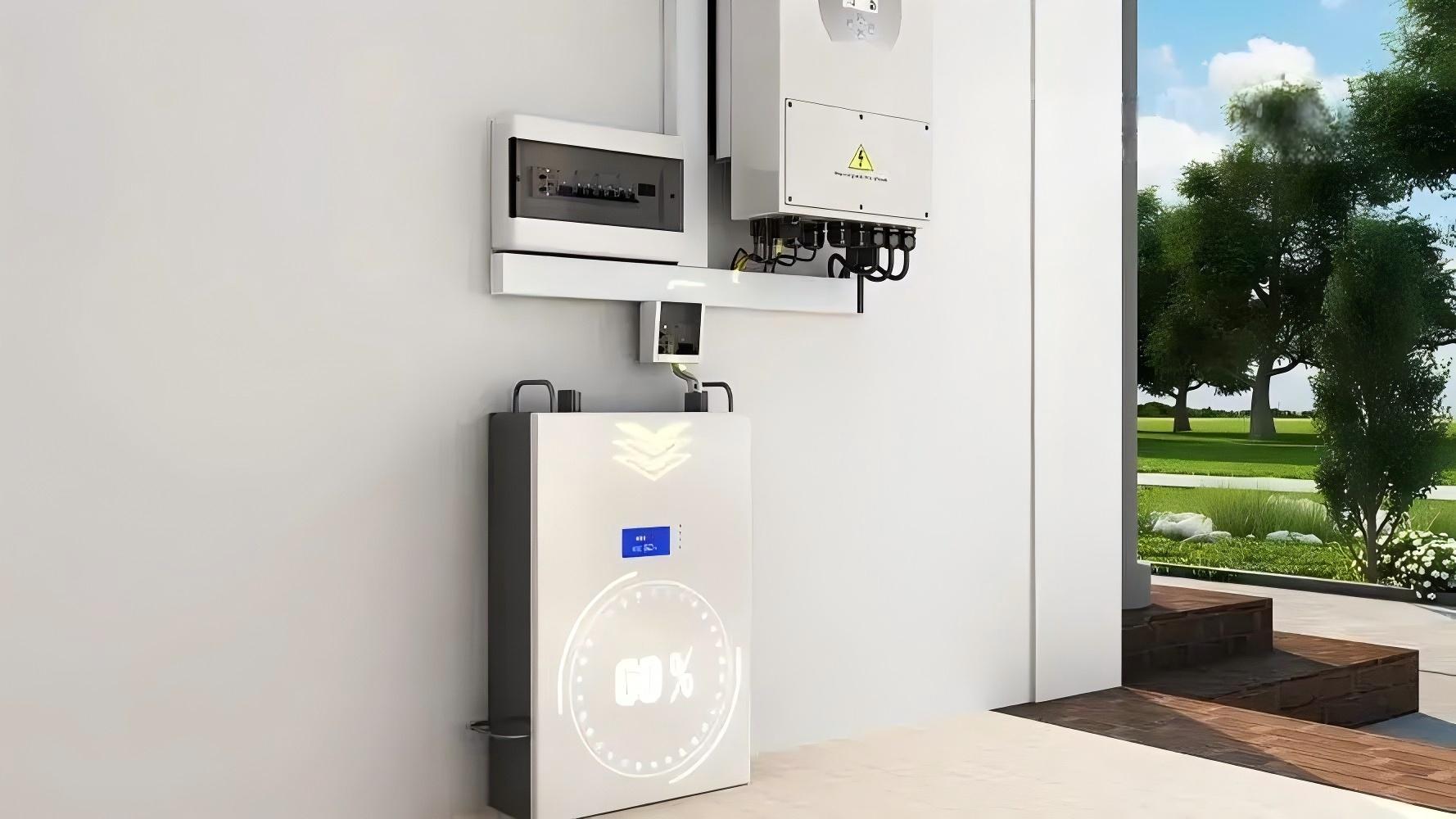

Household energy storage

Provide home energy storage products and energy management solutions,
Reduce the cost of household electricity and ensure the quality of power.
pc背景图 移动背景图

Zero carbon green new life

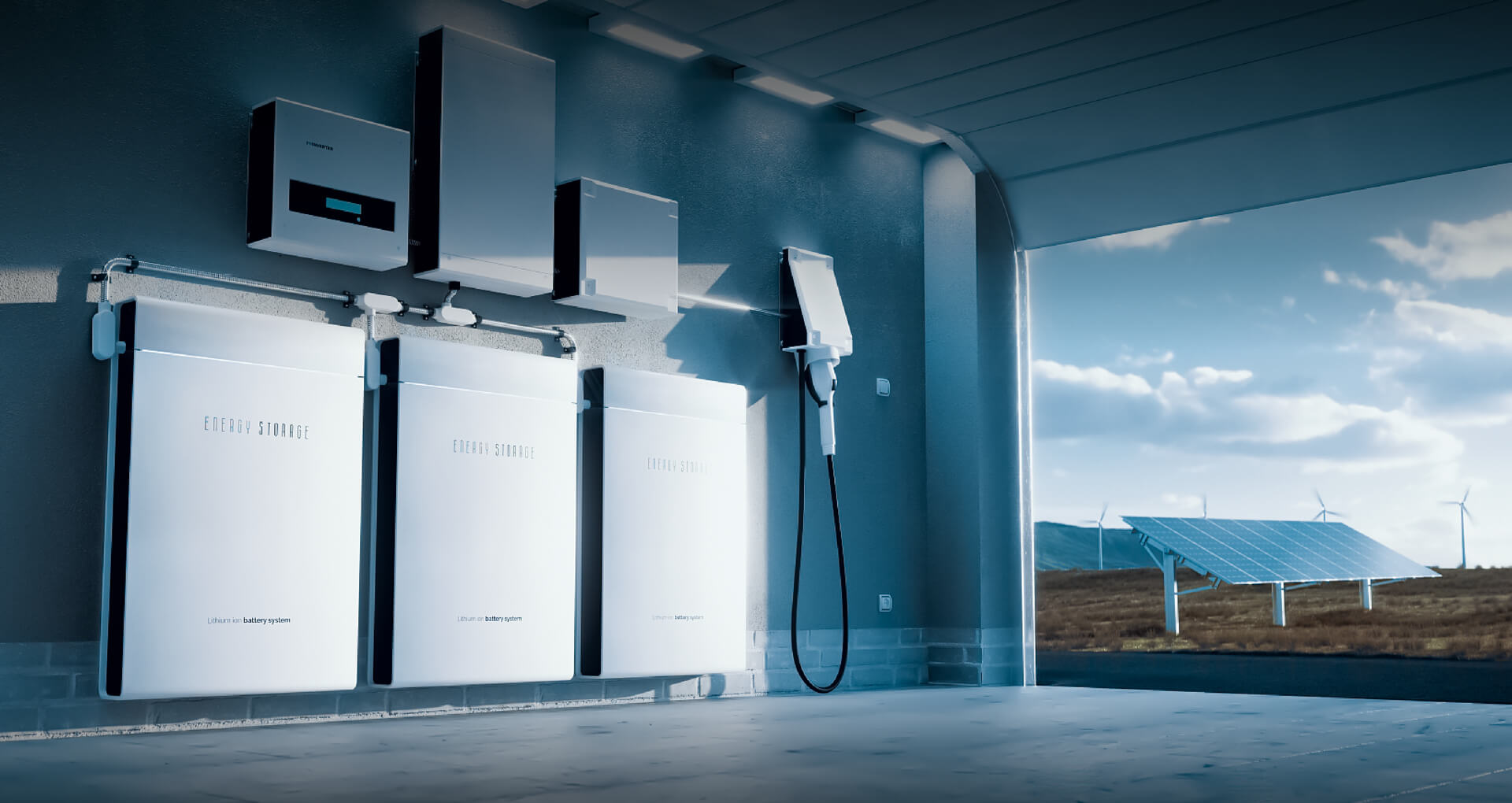

With the mission of building a new zero-carbon life, our home "light + storage" integrated solution uses high-quality lithium iron phosphate batteries in a modular design with flexible capacity expansion and perfect compatibility with the world's mainstream inverters. Whether it is to build a new light storage power station, upgrade an existing home grid-connected system, or use it in an area with no or weak grid, it can help users maximize green energy self-use and enjoy the fun of zero-carbon life.

背景图
背景图

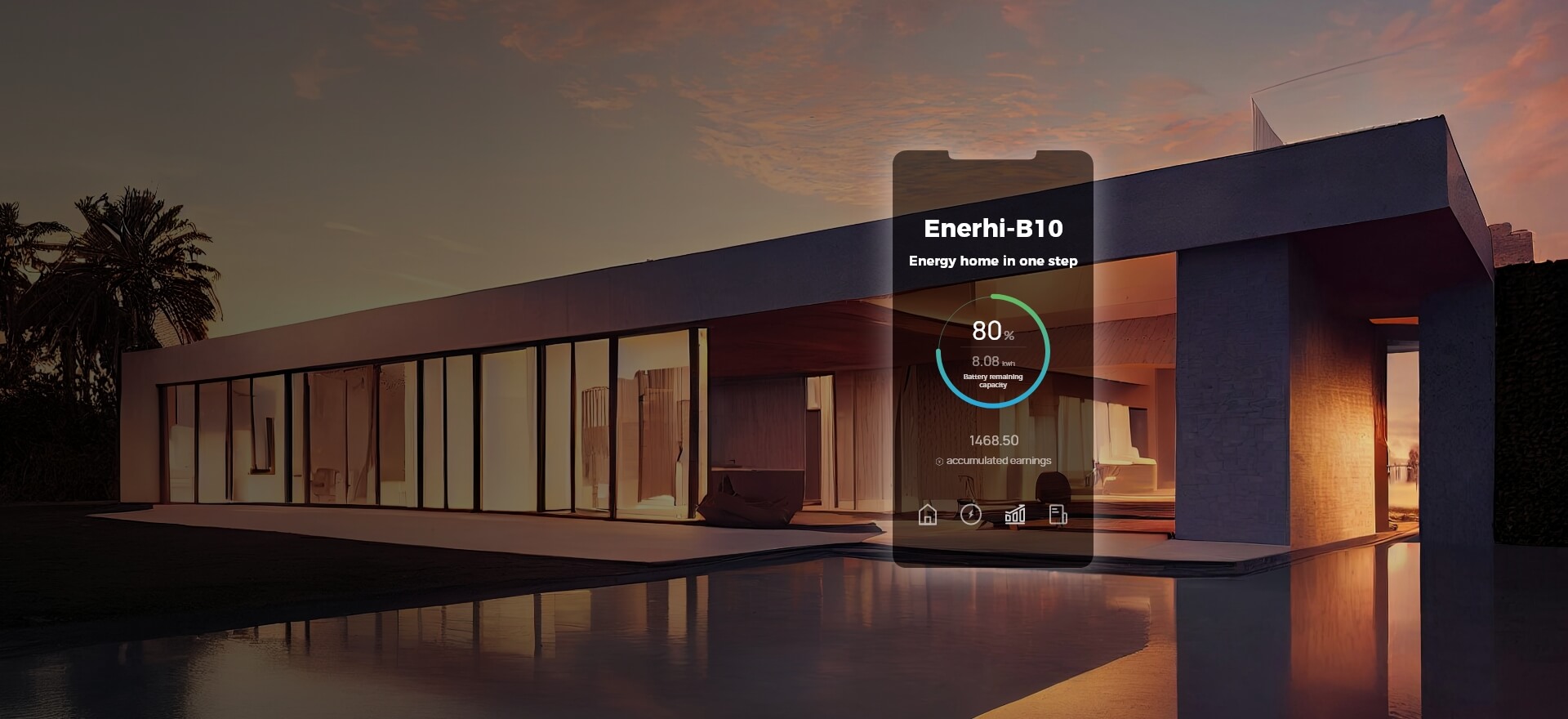

Intelligent monitoring
One screen full monitoring

Monitoring power consumption
Aware of remaining power
Understand charging status
Remote upgrade

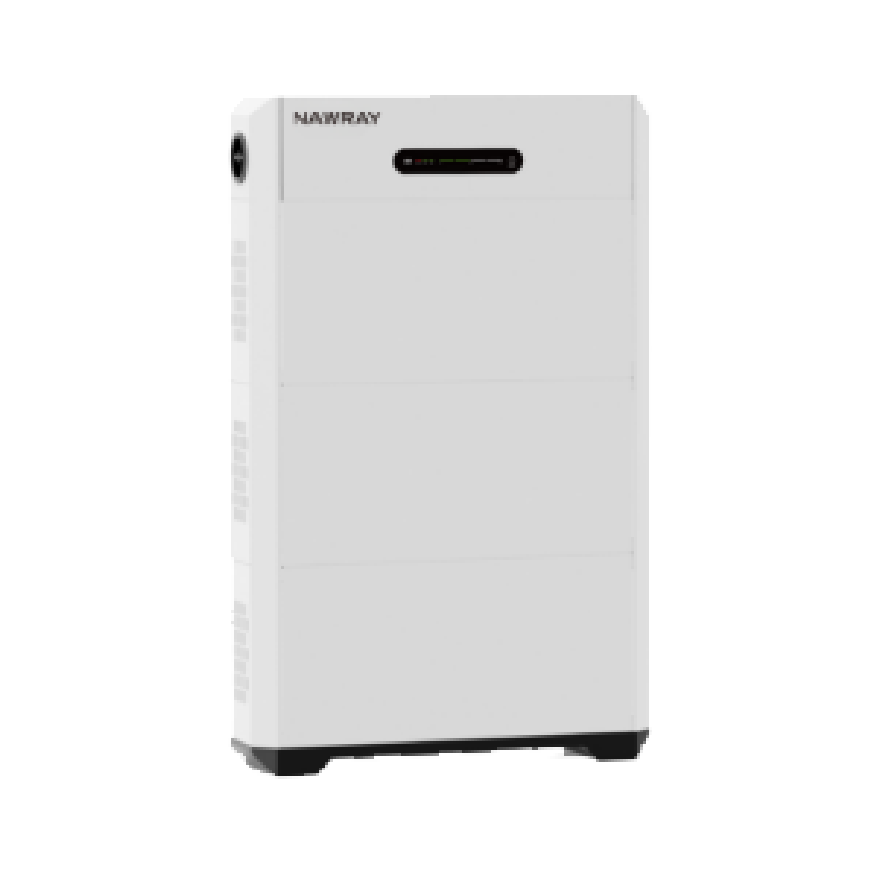

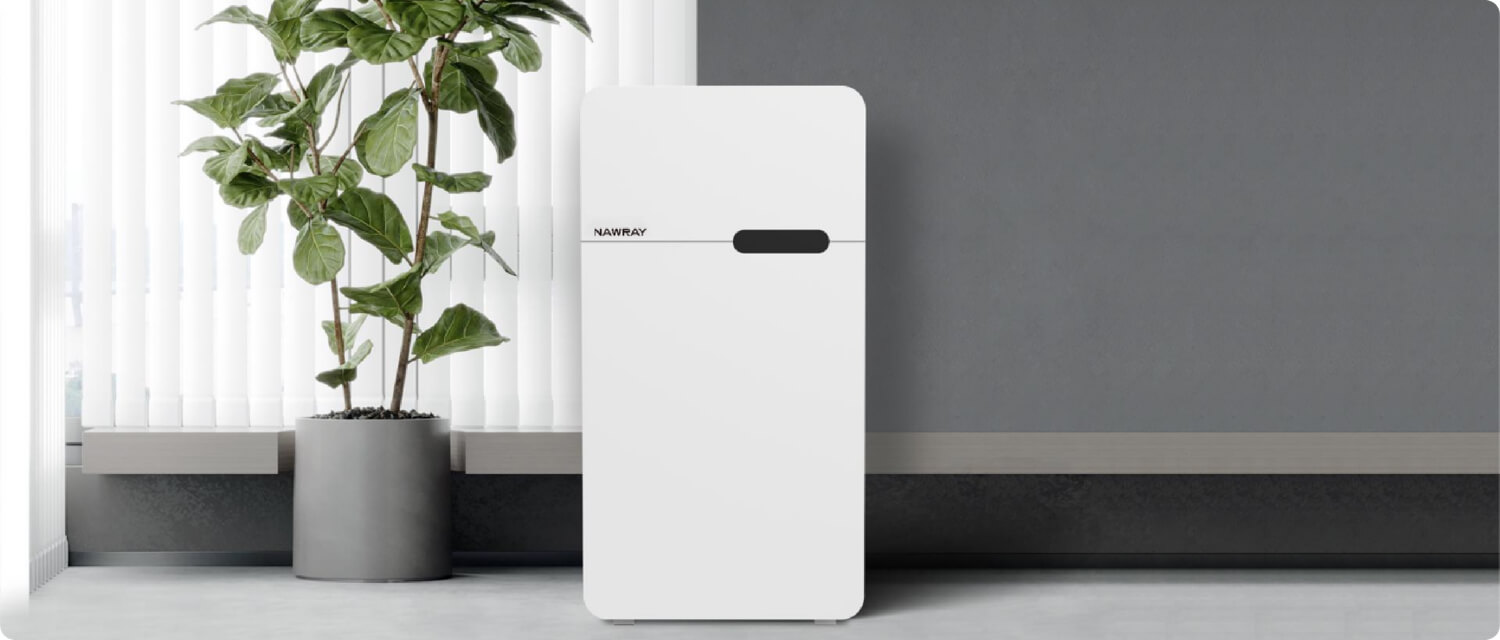

Product model

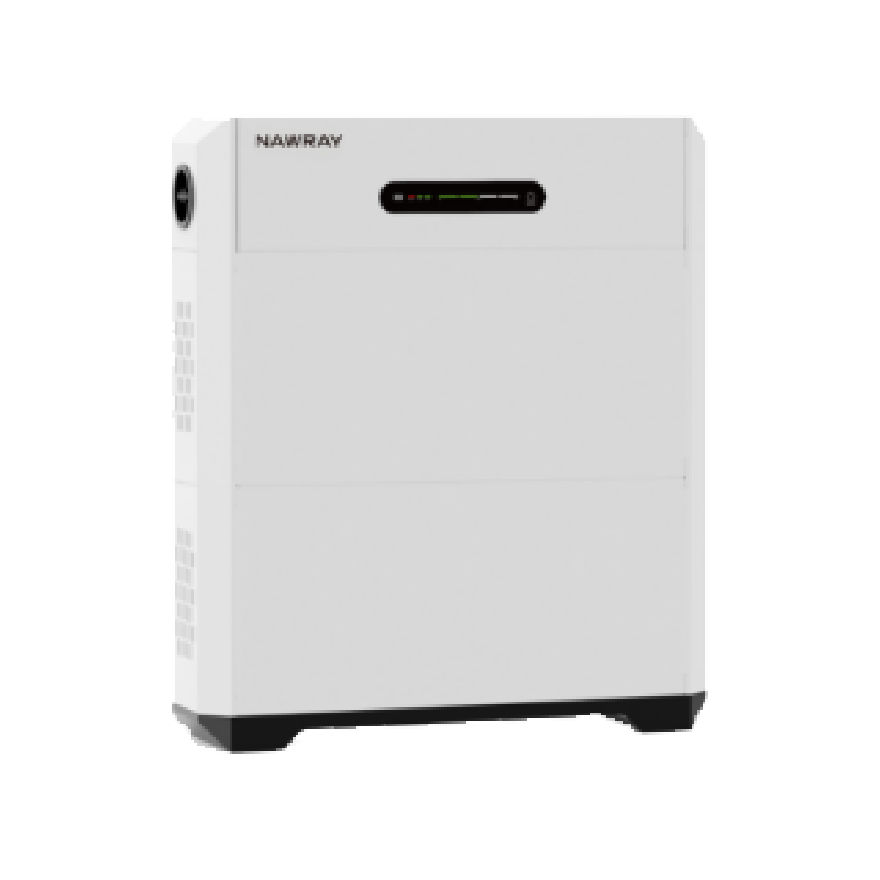

Enerhi-M10

Enerhi-M10

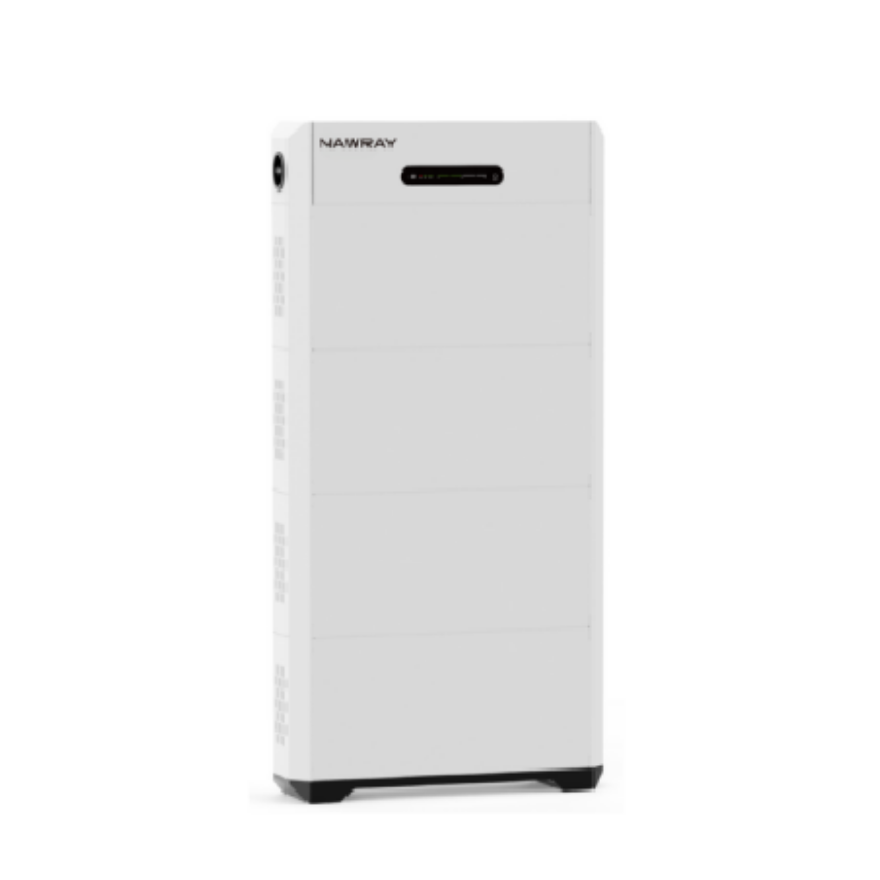

Enerhi-T10

Enerhi-T10

Enerhi-T15

Enerhi-T15

Enerhi-T20

Enerhi-T20

Enerhi-B10

Enerhi-B10

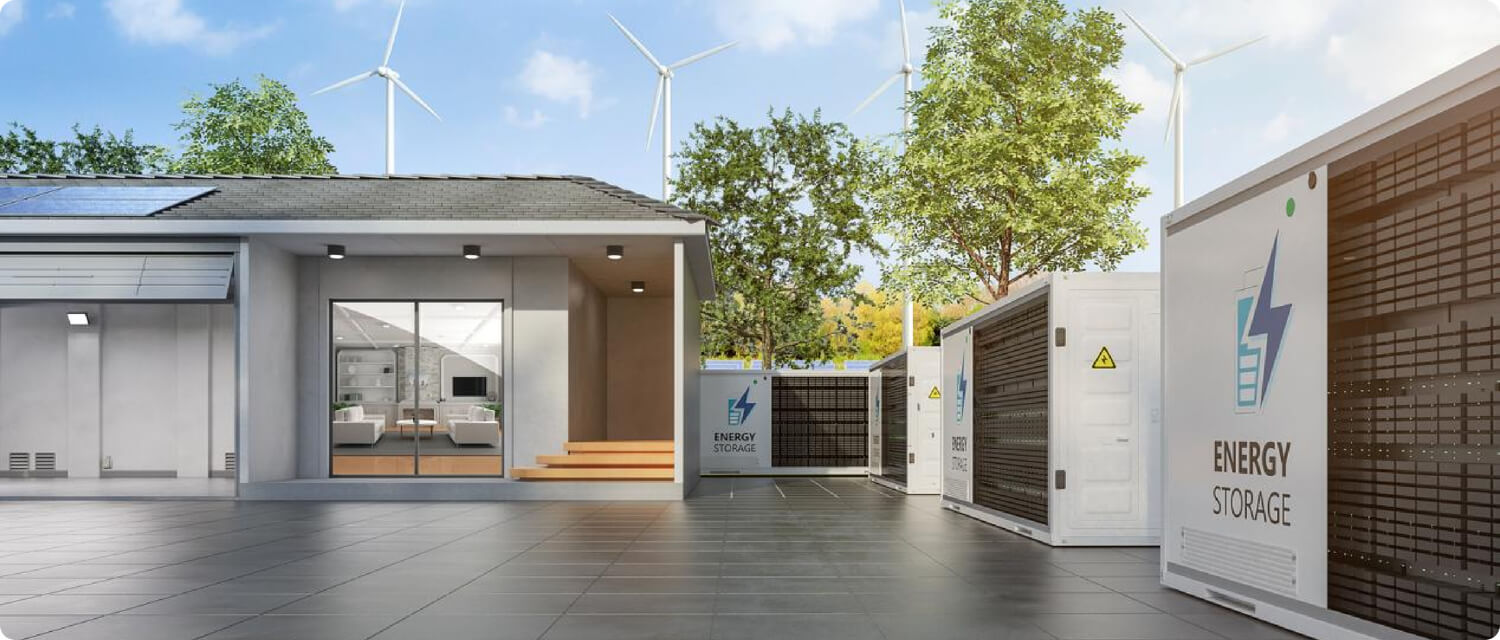

Application scenario

No longer completely dependent on the grid power supply, increasing the energy independence of households

No longer completely dependent on the grid power supply, increasing the energy independence of households

Ensure continuity of household power supply

Ensure continuity of household power supply

Provide a stable power supply to ensure the normal operation of all hotel facilities

Provide a stable power supply to ensure the normal operation of all hotel facilities

Cases

California residential energy storage project

California residential energy storage project

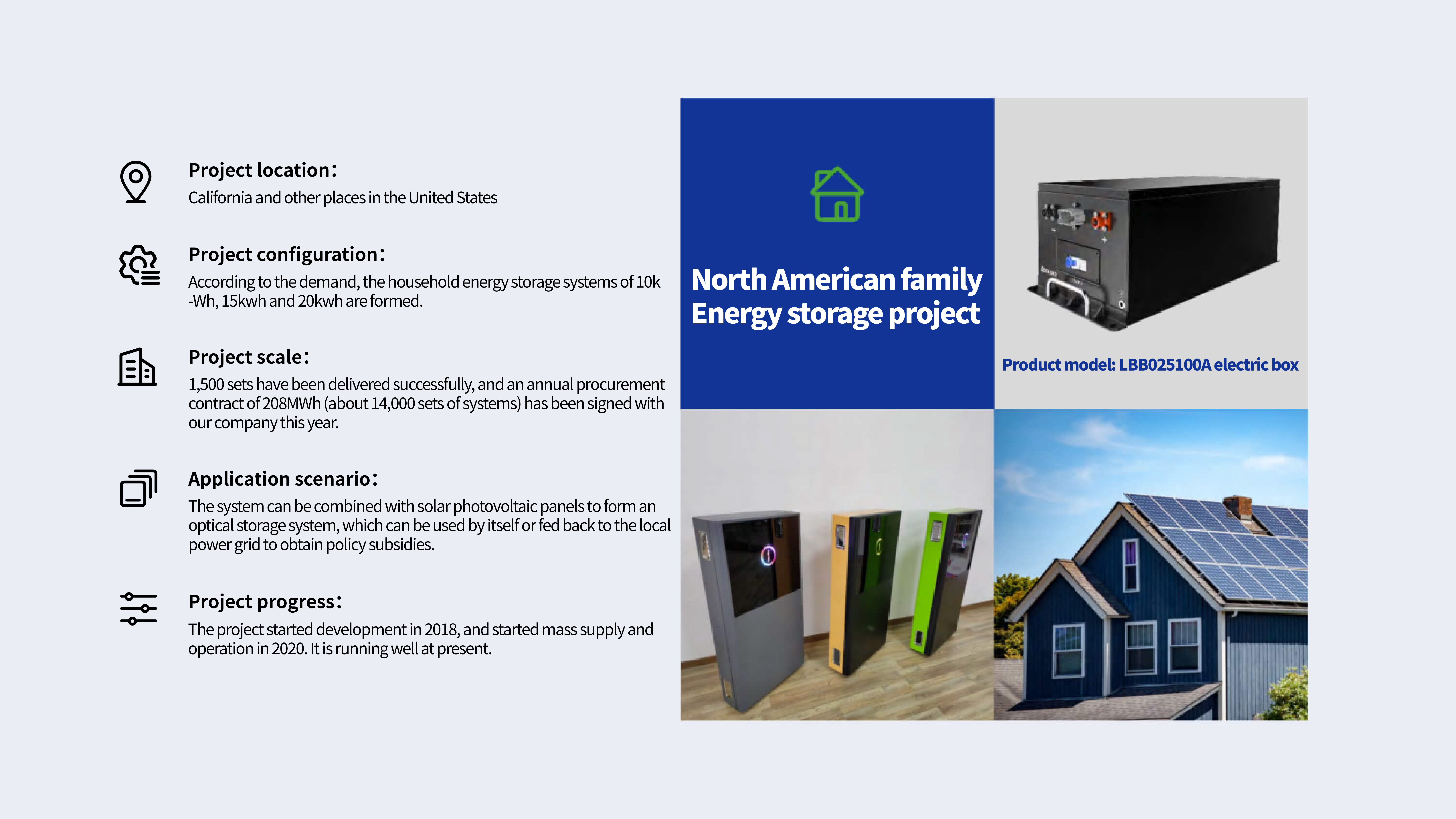

North American home energy storage project

North American home energy storage project

产品认证体系配图

System quality certification, continuous update certification

  • 图标

    North American market

  • 图标

    European market

  • 图标

    Australian market

  • 图标

    Japanese market

  • Enerhi-M10
  • Enerhi-T10
  • Enerhi-T15
  • Enerhi-T20
  • Enerhi-B10
Product manual
Enerhi-M10
Enerhi-T10
Enerhi-T15
Enerhi-T20
Enerhi-B10

  • Type of battery

    Lithium iron phosphate

  • Nominal voltage

    51.2V

  • Rated capacity

    200Ah

  • Rated energy

    10.24kWh

  • Voltage range

    44.8~57.6V

  • Rated charging current

    100A

  • Maximum charging current

    120A

  • Rated discharge current

    100A

  • Maximum discharge current

    120A

  • Weight

    101kg

  • Size（W*D*H）

    550*230*770mm

  • Level of protection

    IP65

  • Type of cooling

    Natural cooling

  • Monitor mode

    WIFI

  • Number of parallel machines

    ≤4

  • Environment temperature

    Recharge: 0~55°C
    discharge: -20~55°C
    stockpile: -30~60°C

  • Humidity

    5~95%, RH

  • Elevation

    ≤2000m

  • Way to install

    Wall-mounted

  • Cycle life

    ≥6000 times (@25±2°C, 0.5C/0.5C, 100%DOD, 70%EOL)

  • Authentication

    IEC62619
    IEC61000
    IEC63056
    UN38.3

  • Type of battery

    Lithium iron phosphate

  • Nominal voltage

    204.8V

  • Rated capacity

    50Ah

  • Rated energy

    10.24kWh

  • Voltage range

    179.2~230.4V

  • Rated charging current

    25A

  • Maximum charging current

    30A

  • Rated discharge current

    25A

  • Maximum discharge current

    30A

  • Weight

    146kg

  • Size（W*D*H）

    823*215*1040mm

  • Level of protection

    IP65/NEMA 4

  • Type of cooling

    Natural cooling

  • Monitor mode

    WIFI

  • Number of parallel machines

    /

  • Environment temperature

    Recharge: 0~55°C
    discharge: -20~55°C
    stockpile: -30~60°C

  • Humidity

    5~95%,RH

  • Elevation

    ≤2000m

  • Way to install

    Console model

  • Cycle life

    ≥6000 times (@25±2℃,0.5C/0.5C,100%DOD,70%EOL)

  • Authentication

    IEC62619
    IEC63056
    IEC61000
    UL1973
    UN38.3

  • Type of battery

    Lithium iron phosphate

  • Nominal voltage

    307.2V

  • Rated capacity

    50Ah

  • Rated energy

    15.36kWh

  • Voltage range

    268.8~345.6V

  • Rated charging current

    25A

  • Maximum charging current

    30A

  • Rated discharge current

    25A

  • Maximum discharge current

    30A

  • Weight

    210kg

  • Size（W*D*H）

    823*215*1425mm

  • Level of protection

    IP65/NEMA 4

  • Type of cooling

    Natural cooling

  • Monitor mode

    WIFI

  • Number of parallel machines

    /

  • Environment temperature

    Recharge: 0~55°C
    discharge: -20~55°C
    stockpile: -30~60°C

  • Humidity

    5~95%,RH

  • Elevation

    ≤2000m

  • Way to install

    Console model

  • Cycle life

    ≥6000 times (@25±2℃,0.5C/0.5C,100%DOD,70%EOL)

  • Authentication

    IEC62619
    IEC63056
    IEC61000
    UL1973
    UN38.3

  • Type of battery

    Lithium iron phosphate

  • Nominal voltage

    409.6V

  • Rated capacity

    50Ah

  • Rated energy

    20.48kWh

  • Voltage range

    358.4~460.8V

  • Rated charging current

    25A

  • Maximum charging current

    30A

  • Rated discharge current

    25A

  • Maximum discharge current

    30A

  • Weight

    274kg

  • Size（W*D*H）

    823*215*1810mm

  • Level of protection

    IP65/NEMA 4

  • Type of cooling

    Natural cooling

  • Monitor mode

    WIF

  • Number of parallel machines

    /

  • Environment temperature

    Recharge: 0~55°C
    discharge: -20~55°C
    stockpile: -30~60°C

  • Humidity

    5~95%,RH

  • Elevation

    ≤2000m

  • Way to install

    Console model

  • Cycle life

    ≥6000 times (@25±2℃,0.5C/0.5C,100%DOD,70%EOL)

  • Authentication

    IEC62619
    IEC63056
    IEC61000
    UL1973
    UN38.3

  • Type of battery

    LFP

  • Voltage rang

    44.8V~57.6V

  • Battery configuration

    2P16S

  • Rated charging current

    100A

  • Nominal voltage

    51.2V

  • Maximum charging current

    120A

  • Rated capacity

    200Ah

  • Rated discharge current

    100A

  • Rated energy

    10.24kWh

  • Maximum discharge current

    120A

  • Maximum photovoltaic power

    6500W
    9000W

  • Ceiling direct voltage

    580V
    600V

  • Rated DC operating voltage

    360V
    360V

  • Maximum input current of each MPPT

    14/14A
    16/16A

  • MPPT maximum short circuit current of each channel

    17.5/17.5A
    23/23A

  • MPPT voltage range

    125~550V
    60~550V

  • MPPT quantity

    2
    2

  • Rated power connected to the grid

    5000VA
    6000VA

  • Rated grid-connected voltage

    230V
    230V

  • Rated frequency of grid connection

    50Hz/60Hz
    50Hz/60Hz

  • Electrical connection

    L/N/PE
    L/N/PE

  • Rated alternating current

    21.7A
    26.1A

  • Maximum alternating current

    24.5A
    27.3A

  • Power factor

    0.8 lead ~0.8 lag
    0.8 lead ~0.8 lag

  • THD

    <3%
    <3%

  • Off-grid rated power

    4600VA
    6000VA

  • Rated off-grid voltage

    230V
    230V

  • Rated off-grid frequency

    50Hz/60Hz
    50Hz/60Hz

  • Electrical connection

    L/N/PE
    L/N/PE

  • Maximum current output

    20A
    27.3A

  • THD

    <3%
    <3%

  • Weight

    149kg

  • Size(W*D*H)

    705*220*1345mm

  • Level of protection

    IP65

  • Type of cooling

    Natural cooling

  • Monitor mode

    WIFI

  • Environment temperature

    Recharge：0~55℃
    discharge：-20~55℃
    stockpile：-30~60℃

  • Humidity

    5~95%
    non-condensing

  • Elevation

    ≤2000m

  • Way to install

    Floor mount

  • Cycle life

    ≥6000 times (@25±2℃,0.5C/0.5C,100%DOD,70%EOL)

  • Authentication

    IEC62619
    IEC61000
    IEC63056
    IEC62109
    UN38.3

Household energy storage

Please contact us for more product information
