Industrial & commercial energy storage solutions

Provide industrial and commercial energy storage products + scene solution services,
And increase the energy efficiency of industrial and commercial entities and reduce production costs.
pc背景图 移动背景图

Industrial and commercial energy storage solutions

Our industrial and commercial energy storage solutions use industry-leading modular system configurations to flexibly match various industrial and commercial scenarios and support multiple operating modes. Through peak cutting and valley filling, peak switching, etc., it can effectively relieve the pressure on the grid, improve the reliability of power supply and power quality, and bring customers the customer value of "higher returns, safer and more reliable, and more intelligent operation and maintenance".

  1. 背景图

    Emergency power supply

    In the case of power failure as an emergency power supply, to ensure the normal operation of enterprises

  2. 背景图

    Peak-valley arbitrage

    Use peak-valley electricity price difference to reduce the enterprise's own electricity cost

  3. 背景图

    Electricity expansion

    Alleviate the dilemma of insufficient power capacity after the expansion of production

  4. 背景图

    Demand regulation

    Reduce demand electricity costs and reduce production costs

背景图

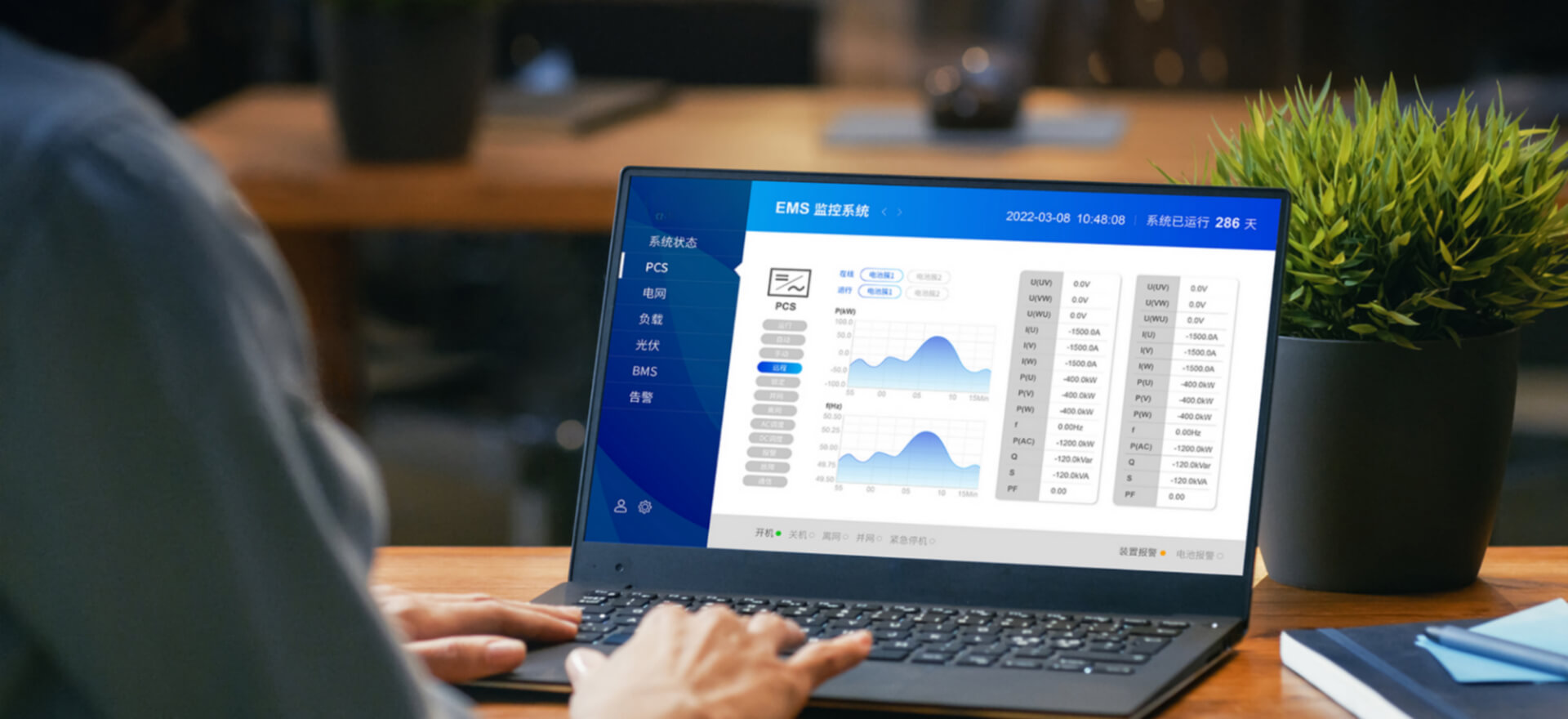

Intelligent management
Operational data at a glance

Built-in EMS
Supports multiple operation modes
View the running status at any time

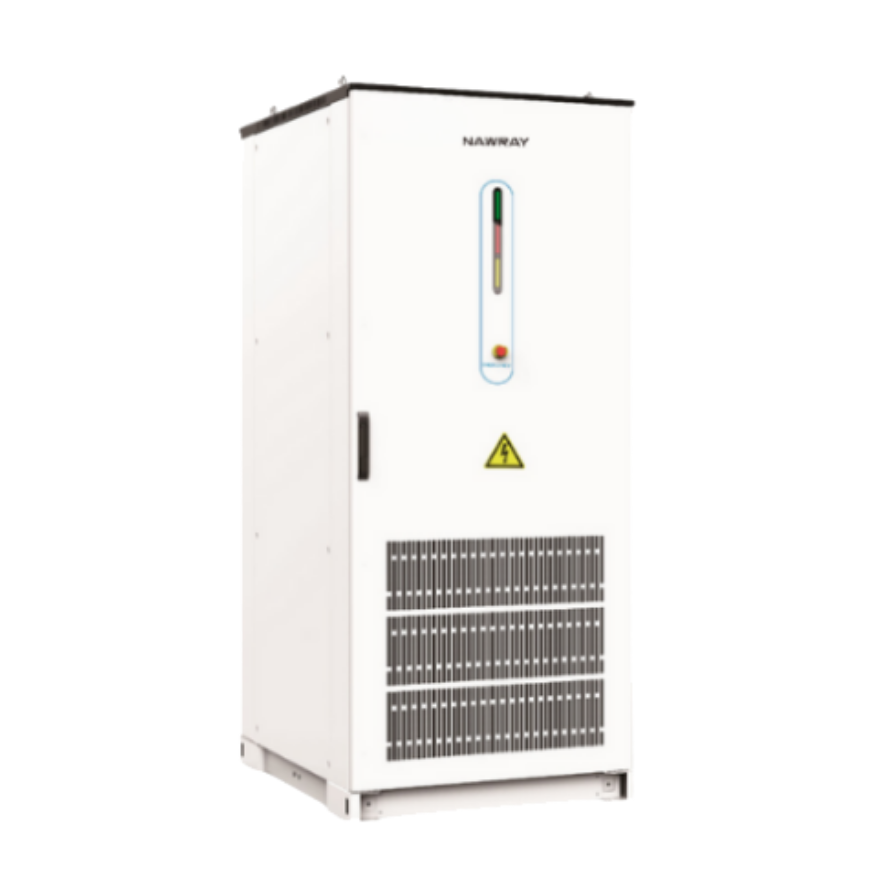

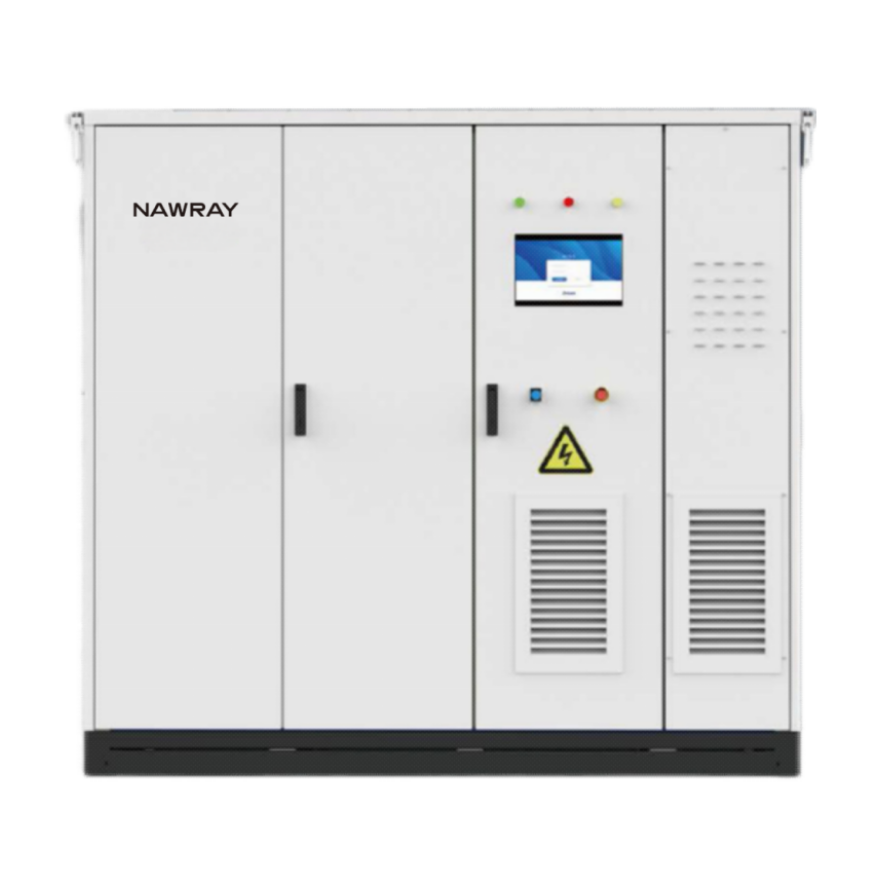

Product model

Enerwow-M261

Enerwow-M261

Enerwow-M122

Enerwow-M122

Enerwow-M102

Enerwow-M102

Enerwow-M81

Enerwow-M81

Application scenario

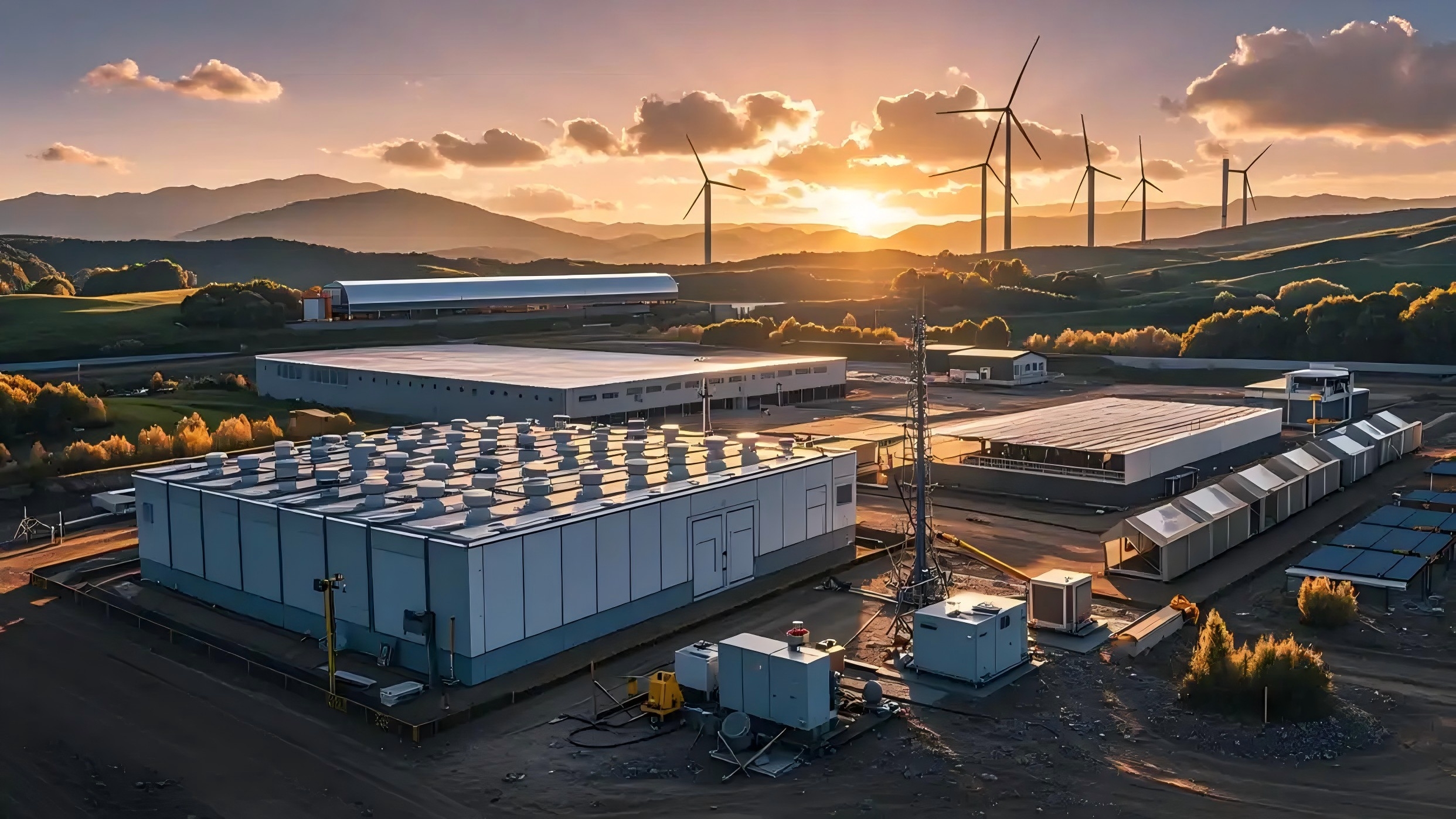

Industrial microgrid

Industrial microgrid

Integration of photovoltaic and energy storage

Integration of photovoltaic and energy storage

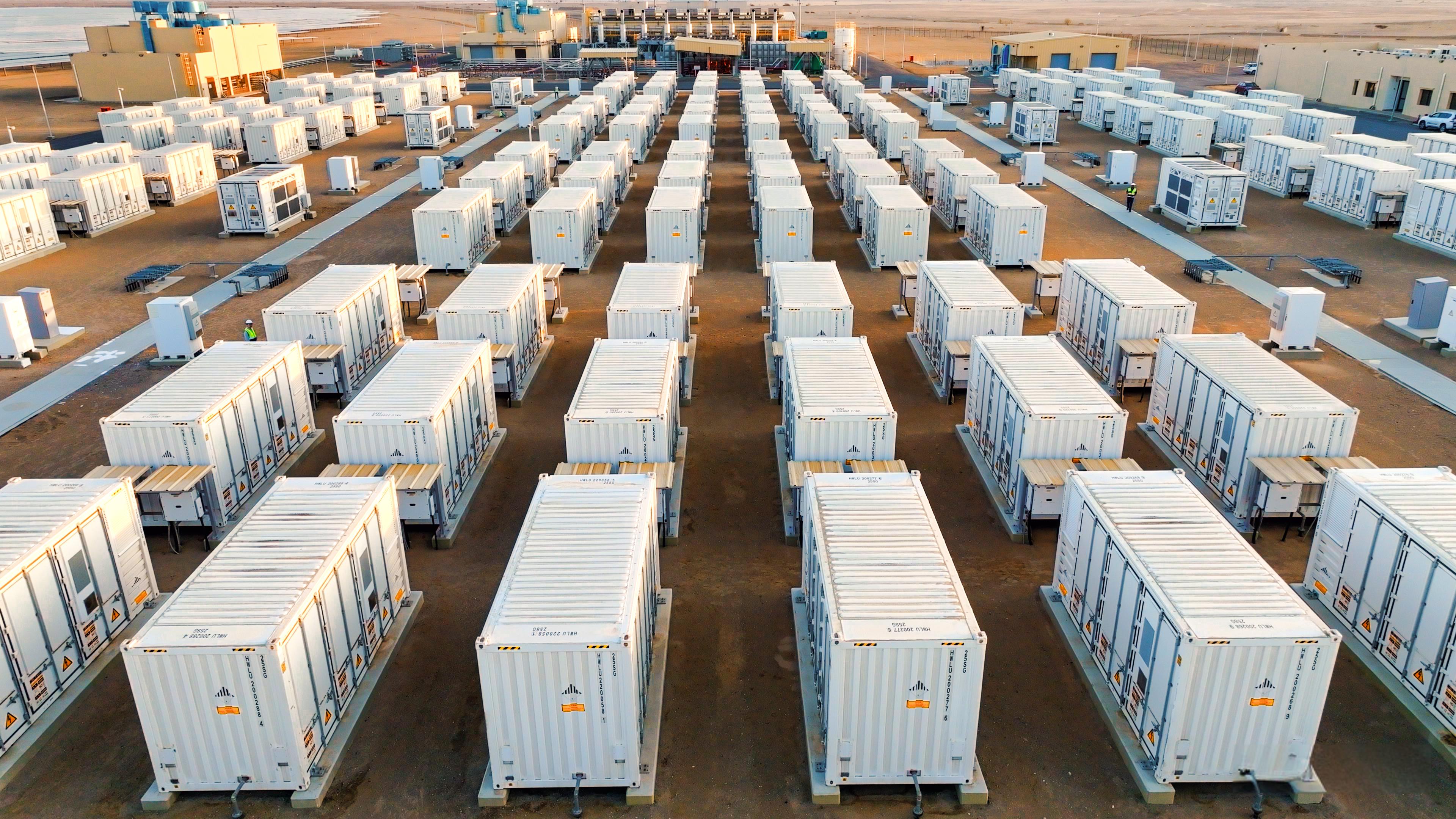

Centralized energy storage

Centralized energy storage

Cases

Maldives energy storage Project

Maldives energy storage Project

Energy storage projects in North America

Energy storage projects in North America

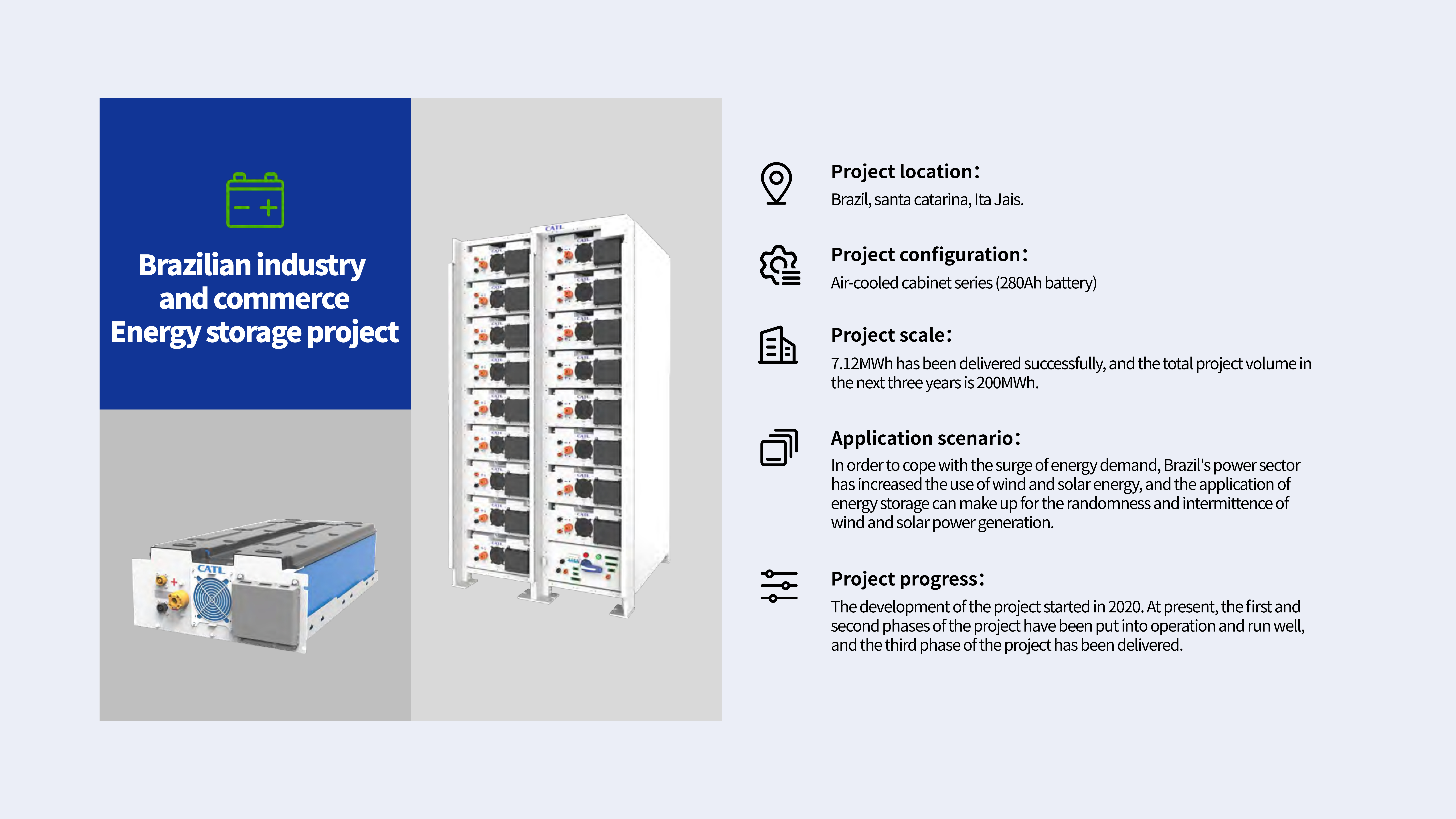

Industrial and commercial energy storage project in Brazil

Industrial and commercial energy storage project in Brazil

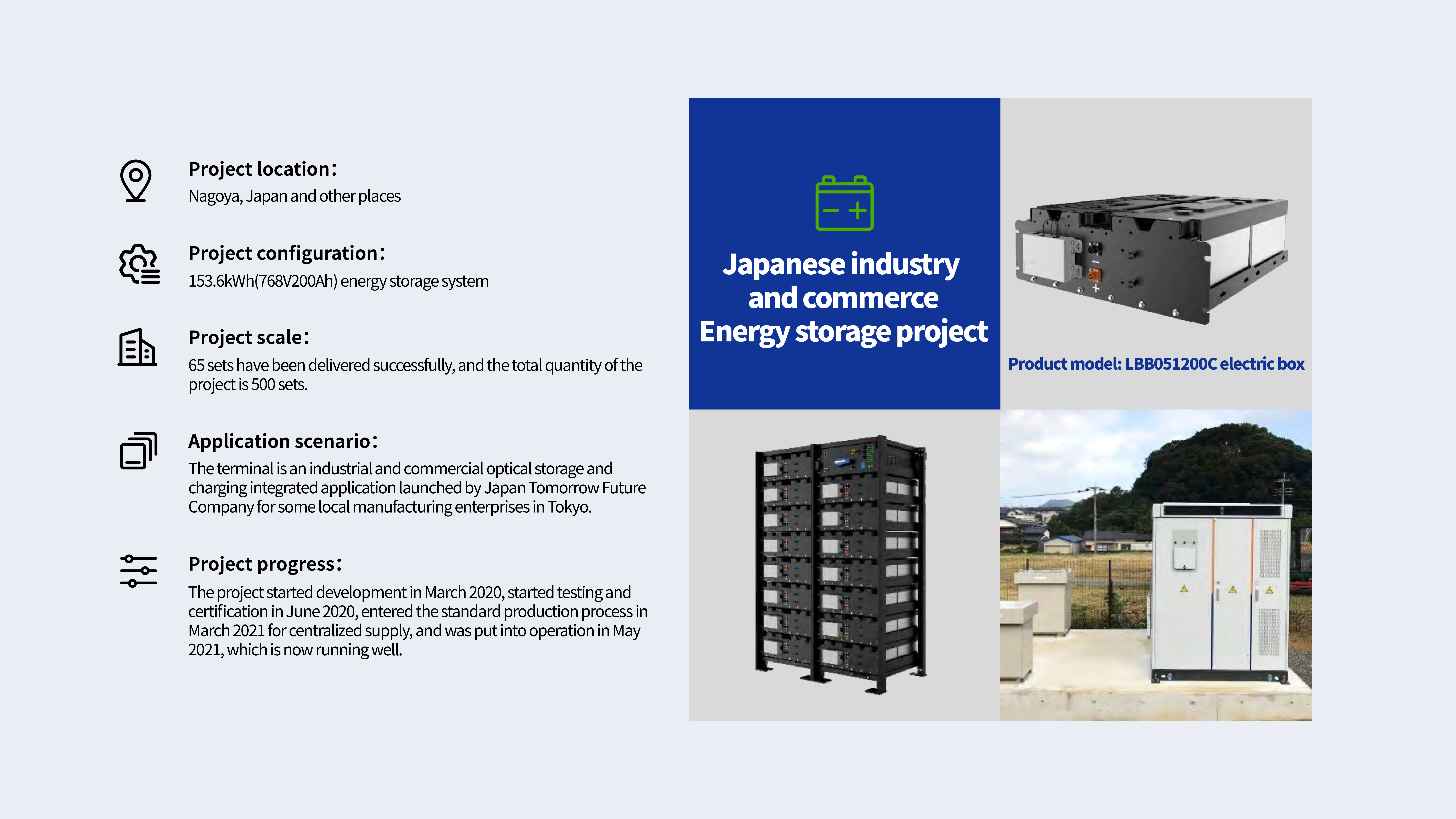

Industrial and commercial energy storage project in Japan

Industrial and commercial energy storage project in Japan

产品认证体系配图

System quality certification, continuous update certification

  • 图标

    North American market

  • 图标

    European market

  • 图标

    Australian market

  • 图标

    Japanese market

  • Enerwow-M261
  • Enerwow-M122
  • Enerwow-M102
  • Enerwow-M81
Product manual
Enerwow-M261
Enerwow-M122
Enerwow-M102
Enerwow-M81

  • Rated power

    125kW

  • Rated grid power supply

    AC 400V

  • Ac access mode

    3/N/PE

  • Network frequency range

    50/60Hz

  • Grid voltage range

    -10%~+15%

  • Total harmonic distortion rate of current

    ≤3% full load

  • Power factor

    0.99/-1~1

  • Installed capacity

    261.25kWh

  • Nominal voltage

    DC 832V

  • Dc rated current

    157A

  • Maximum DC power

    137kW

  • Energy efficiency

    At rating≥90%

  • Operating ambient temperature

    -30℃ ~+60℃

  • Allow less relative humidity

    ≤95%，without condensation

  • Noise

    ≤75dB

  • Type of cooling

    Full liquid cooling

  • Fire extinguishing system

    Tertiary fire protection

  • Level of protection

    IP54

  • Elevation

    ≤2000 meters, more than 2000 meters need to be derated

  • Weight

    ≈2.5T

  • Communication interface

    Ethernet、RS485

  • Communication protocol

    MODBUS TCP、MODBUS RTU

  • Dimensions(D*W*H)

    1300*1000*2350mm

  • Authentication

    IEC62619 IEC62477 IEC61000

  • Type of battery

    Lithium iron phosphate

  • Cell type

    100Ah

  • Appl

    1P16S*12S*2P

  • Nominal voltage

    614.4V

  • Rated energy

    122.88kWh

  • Voltage range

    537.6~691.2V

  • Cycle life

    ≥6000 times (@25+2°C,0.5C/0.5C,100%DOD,70%EOL)

  • Type of cooling

    Intelligent air cooling

  • Rated network voltage

    400Vac, 3P4W

  • Rated network frequency

    50Hz/60Hz

  • Rated power

    60kVA

  • THDi

    /

  • Power factor

    -1~1,continuously adjustable

  • And off-grid automatic switching

    Possess

  • Rated output voltage

    400Vac, 3P4W

  • Maximum power output

    6OkVA

  • Power factor

    -1~1,continuously adjustable

  • Environment temperature

    -20~50℃

  • Communication mode

    Ethernet

  • Size(W*D*H)

    2289*1216*2200mm

  • Weight

    2900kg

  • Level of protection

    IP55

  • Authentication

    IEC62619
    IEC62477
    IEC61000

  • Type of battery

    Lithium iron phosphate

  • Cell type

    100Ah

  • Appl

    1P16S*10S*2P

  • Nominal voltage

    512V

  • Rated energy

    102.4kWh

  • Voltage range

    448~576V

  • Cycle life

    ≥6000 times (@25+2°C,0.5C/0.5C,100%DOD,70%EOL)

  • Type of cooling

    Intelligent air cooling

  • Rated network voltage

    400Vac, 3P4W

  • Rated network frequency

    50Hz/60Hz

  • Rated power

    50kVA

  • THDi

    /

  • Power factor

    -1~1,continuously adjustable

  • And off-grid automatic switching

    Possess

  • Rated output voltage

    400Vac, 3P4W

  • Maximum power output

    50kVA

  • Power factor

    -1~1,continuously adjustable

  • Environment temperature

    -20~50℃

  • Communication mode

    Ethernet

  • Size(W*D*H)

    2289*1216*2200mm

  • Weight

    2720kg

  • Level of protection

    IP55

  • Authentication

    IEC62619

  • Type of battery

    Lithium iron phosphate

  • Cell type

    100Ah

  • Appl

    1P16S*8S*2P

  • Nominal voltage

    409.6V

  • Rated energy

    81.92kWh

  • Voltage range

    358.4~460.8V

  • Cycle life

    ≥6000 times (@25+2°C,0.5C/0.5C,100%DOD,70%EOL)

  • Type of cooling

    Intelligent air cooling

  • Rated network voltage

    400Vac, 3P4W

  • Rated network frequency

    50Hz/60Hz

  • Rated power

    40kVA

  • THDi

    <3%

  • Power factor

    -1~1,continuously adjustable

  • And off-grid automatic switching

    Possess

  • Rated output voltage

    400Vac, 3P4W

  • Maximum power output

    40kVA

  • Power factor

    -1~1,continuously adjustable

  • Environment temperature

    -20~50℃

  • Communication mode

    Ethernet

  • Size(W*D*H)

    2289*1216*2200mm

  • Weight

    2640kg

  • Level of protection

    IP55

  • Authentication

    IEC62619

Industrial and commercial energy storage solutions

Please contact us for more product information
